Dynalco SST-7400D Digital Speed Switch & Transmitter
SST-7400D Digital Speed Switch 數字顯示速度開關變送器
工業發動機、渦輪機械和泵的速度測量和超速保護儀表
技術資料下載：
Dynalco SST-7200 / 7200D / 7400 / 7400D Data Sheet
Dynalco SST-7200D / 7400D Manual
Product Code: SST-7400D
產品簡介：

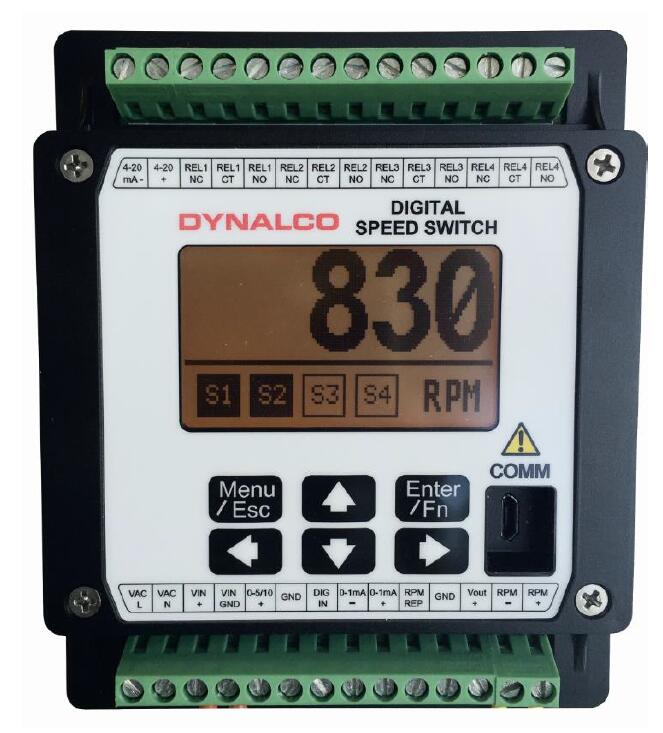

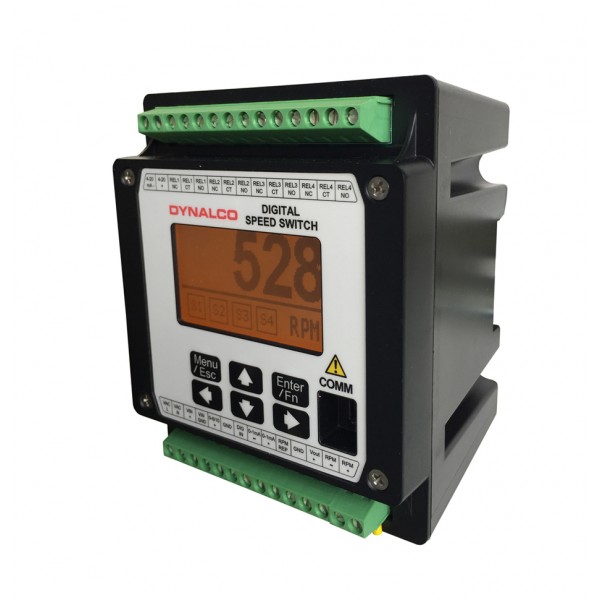

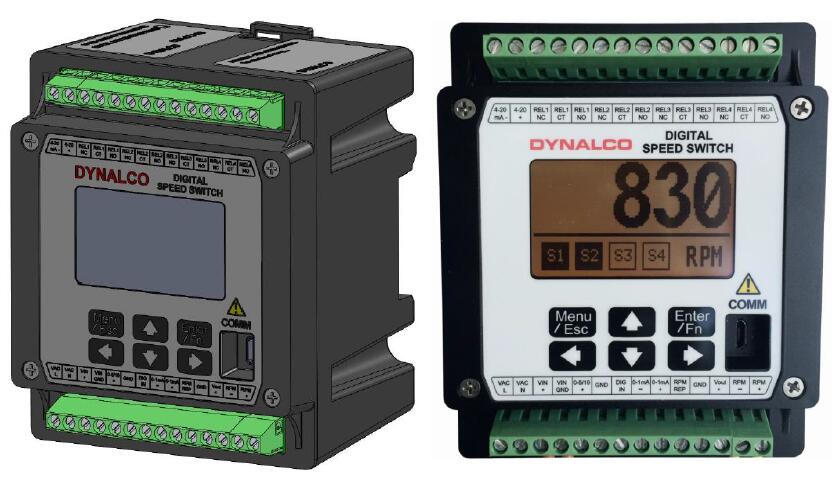

Dynalco SST-7400D是一個可編程的PC，安裝在DIN軌道上的速度開關，具有顯示和鍵盤編程功能。它有4個標準繼電器，通過提供可靠的欠速/超速保護來保護旋轉設備免受故障的影響。SST-7200（D）和SST-7400（D）接受脈沖輸入，并提供4-20mA輸出，該輸出非常精確和穩定，溫度變化代表本地面板儀表或PLC模擬輸入卡的旋轉機械速度。它們還提供2個“SST-7200（D）”和4個“SST-7400（D）”快速繼電器對超速/低速條件的響應。應用范圍包括工業發動機、渦輪機械和泵的速度測量和超速保護。Dynalco SST-7400D is a PC-programmable, DIN rail mounted speed switch with display and keypad programmability. It has 4 standard relays to protect your rotating equipment from failure by providing reliable under/over speed protection。
Dynalco SST-7200 / 7200D / 7400 / 7400D Digital Speed Switch Data Sheet
產品技術資料 PDF Catalog下載
SST-7200, SST-7400 SST-7200D & SST-7400D Product Data Sheet
Instrumentation & Controls Speed Switch / Transmitter
- 接受2線或3線制速度傳感器
- 0-50 KHz輸入頻率范圍
- 4–20毫安輸出（隔離）
- 0–5/0–10 VDC線性輸出
- 50毫秒繼電器響應時間
- 2或4 SPDT繼電器
- 拾取感測失�。ù蜷_(kāi)）
- 方波中繼器輸出
- 10–36伏直流輸入電源
- 可用輸入隔離變壓器
- PC可通過USB端口編程
- 前鍵盤可編程（適用于帶LCD顯示屏的機型）
-– I后綴：
電源的隔離轉速輸入
300伏以上峰值接地
-– AC后綴（適用于帶LCD顯示屏的機型）：
VAC L/VAC N端子使用的交流電源電壓（見電氣規范）
DYNALCO SST-7200（D）和SST-7400（D）接受脈沖輸入，并提供4-20mA輸出，該輸出非常精確和穩定，溫度變化代表本地面板儀表或PLC模擬輸入卡的旋轉機械速度。它們還提供2個“SST-7200（D）”和4個“SST-7400（D）”快速繼電器對超速/低速條件的響應。應用范圍包括工業發動機、渦輪機械和泵的速度測量和超速保護。SST-7200(D) & SST-7400(D) accept a pulsed input and provide a 4-20 mA output that is very accurate and stable with temperature changes representing speed of rotating machinery for a local panel meter or PLC analog input card. They also provide 2 “SST-7200(D)” and 4 “SST-7400(D)” quick relay responses to over/under speed conditions. Applications include speed measurement & overspeed protection of industrial engines, turbomachinery and pumps.
規格參數
電氣：
電源電壓：10至36伏直流電，5瓦（標準）
–AC后綴：僅適用于帶LCD顯示屏的型號。
端子上的交流（和直流）電源電壓VAC L和VAC N。
115至280伏交流電和115至400伏直流電，10瓦。
輸入類型：2線制磁性拾波器（可變磁阻）
三線霍爾效應
三線放大VR型
–I后綴：電源接地的隔離轉速輸入超過300V峰值
輸入靈敏度：25 mV–50 VRMS
比例輸出：完全隔離4–20毫安（來源）
加上0–5伏直流電或0–10伏直流電
儀表顯示0-1毫安線性輸出
繼電器：額定電流為6安培、電壓為28伏直流電或115伏交流電的單刀雙擲觸點
顯示信息：
轉速、警報、設置（轉速信號、設定點/繼電器邏輯、模擬輸入、安全、繼電器測試、設定點日志和顯示）
機械： 導軌安裝（標準35 mm）
環境的：
工作溫度范圍 ：-40°C至+70°C
儲存溫度范圍：-40°C至+80°C

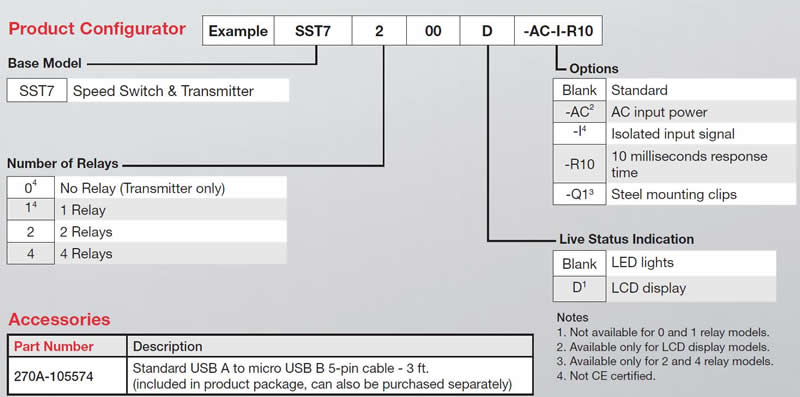

訂貨指導：
Specify part number as follows:
2 setpoints
SST-7200 with LED
SST-7200D with Display
SST-7200-I with LED, Isolated RPM input
SST-7200D-I with Display, Isolated RPM input
SST-7200D-AC with Display, VAC supply power
SST-7200D-I-AC with Display, VAC supply power & Isolated RPM input
4 setpoints
SST-7400 with LED
SST-7400D with Display
SST-7400-I with LED, Isolated RPM input
SST-7400D-I with Display, Isolated RPM input
SST-7400D-AC with Display, VAC supply power
SST-7400D-I-AC with Display, VAC supply power & Isolated RPM input
資料下載：
Declaration of Conformity - SST7000 Series (EN)
SST-7000 Series Digital Speed Switch/Transmitter/Repeater Host Software (EN)
Dynalco SST-7000 Series Digital Speed Switch/Transmitter/Repeater CSA Approval (EN)
Dynalco SST-7200 & SST-7400 Manual (EN)
Dynalco SST-7000 & SST-7100 Manual (EN)
Dynalco SST-7200D & SST-7400D Manual (EN)
Dynalco SST-7000 Series Digital Speed Switch/Transmitter/Repeater Datasheet (EN)
Authorized Distributor: CNMEC Technology (Beijing) Co., Ltd Add: Rm2115, C Building T1 Tower,Wangjing SOHO,Chaoyang Dist, Beijing
Phone:010-8428 395,139 1096 2635 Email: sales@cnmec.biz Web: http://www.cnmec.biz/dynalco.htm
